If providing as graphics, word and design softwares like Illustrator or Coral Draw can be used.

If using transcription software like Duxbury, Guidelines for Technical Material (<https://www.iceb.org/ueb.html>16.7 Structural Formulae) for UEB Math/Science<https://www.iceb.org/ueb.html> or Chemical Notation Using the Nemeth Braille Code 2023<https://www.brailleauthority.org/sites/default/files/chemistry/Chemical%20Notation%20Using%20the%20Nemeth%20Braille%20Code%202023.pdf> can be used.

Depends on what the student is familiar with. If using Duxbury, will need to include a list of special braille symbols used like the various bonds and superscript symbols for reference.

Ramya Karthikeyan
Alternative Format Specialist
UCLA Center for Accessible Education
310-825-1501 (CAE line)

http://www.cae.ucla.edu/

________________________________
From: athen-list <athen-list-bounces at mailman22.u.washington.edu> on behalf of Willard, Amy via athen-list <athen-list at u.washington.edu>
Sent: Tuesday, September 9, 2025 7:05:45 AM
To: Access Technology Higher Education Network <athen-list at u.washington.edu>
Subject: [Athen] Chemical bonds in Braille

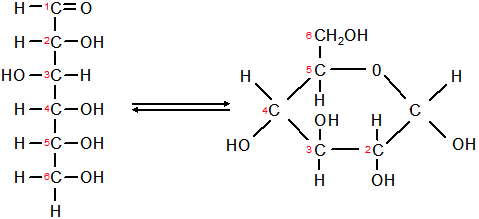

I am trying to figure out the best way to create chemical bond structures for a blind student. In the past I have been enlarging a photo like the one below, putting it through my toaster/tactile machine, and cutting and gluing Braille labels  in place of the text. I feel like there is a better way to do this.  I have Duxbury so I have heard there is a way to do it on there (currently looking up manuals) but I wanted to see how other schools convert something like this:

[http://faculty.clintoncc.suny.edu/faculty/michael.gregory/files/Bio%20101/Bio%20101%20Lectures/Biochemistry/linear%20and%20ring%20forms%20of%20glucose.gif]



Thanks all,



Amy Willard

Accessible Technology Coordinator|ADA Compliance

Metropolitan Community College

Office: 816-604-1092

3200 Broadway, Kansas City, MO  64111<https://www.google.com/maps/place/3200+Broadway,+Kansas+City,+MO+64111/@39.068401,-94.5925967,17z/data=!3m1!4b1!4m2!3m1!1s0x87c0f0268c405bbd:0x3948585fea5ebee4>

amy.willard at mcckc.edu<mailto:amy.willard at mcckc.edu> | www.mcckc.edu<http://www.mcckc.edu/>



Preparing students, serving communities, creating opportunities for all
